Technical data

Vehicle specifications

Full performance, dimension, and construction data for each vehicle in the Silvian Motors range.

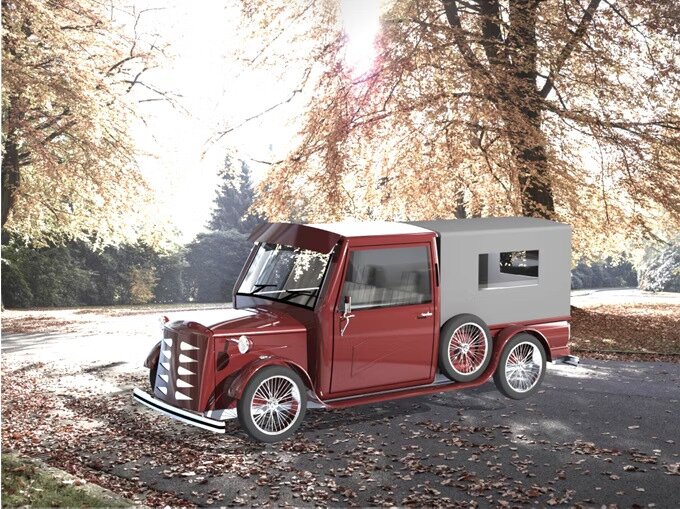

Unit 01 electric pickup, front three-quarter view Unit 01 electric pickup with canopy, rear three-quarter view
UNIT 01

Electric Pickup

Compact electric pickup for last-mile delivery and light agricultural work, with an open bed and optional canopy.

Performance

Motor15 kW
Range (full load)150 km
Max speed90 km/h
Charging time~4 h

Capacity

Seats2
Doors2
Weight600 kg
Payload500 kg
Total weight (driver, passenger, batteries, load)1265 kg

Dimensions

Length3700 mm
Width1400 mm
Height1450 mm
Front overhang650 mm
Rear overhang680 mm
Wheelbase2370 mm

Brakes & Drive

DriveRear-wheel
BrakesDisc, front & rear
ABSYes
Tires135/60 R13

Construction: steel chassis, fiberglass body and bed, front luggage compartment, AC, roll bar, spring bumpers, open bed with optional canopy, optional 4WD.

Chassis & drivetrain

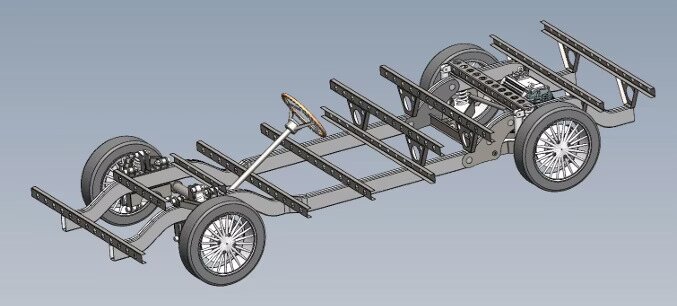

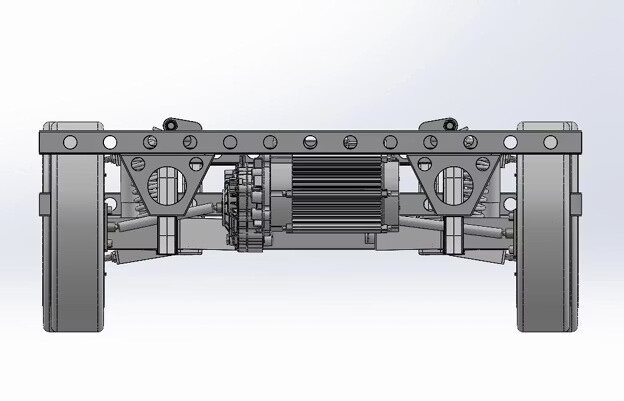

Chassis assembly diagram showing frame, wheels, and steering column Rear axle and motor assembly diagram

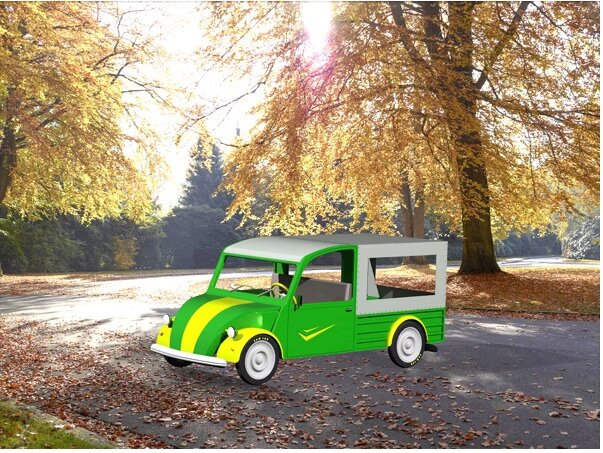

Unit 02 electric pickup variant, front three-quarter view Unit 02 electric pickup variant with canopy, rear three-quarter view
UNIT 02

Electric Pickup No. 2

The same working pickup platform as Unit 01, tuned for longer routes with extended range for delivery fleets and rural use.

Performance

Motor15 kW
Range (full load)180 km
Max speed90 km/h
Charging time~4 h

Capacity

Seats2
Doors2
Weight600 kg
Payload350 kg
Total weight (driver, passenger, batteries, load)1265 kg

Dimensions

Length3500 mm
Width1400 mm
Height1450 mm
Front overhang600 mm
Rear overhang630 mm
Wheelbase2270 mm

Brakes & Drive

DriveRear-wheel
BrakesDisc, front & rear
ABSYes
Tires135/60 R13

Construction: steel chassis, fiberglass body, front luggage space, AC, roll bar, spring bumpers, open bed with optional canopy, optional 4WD.

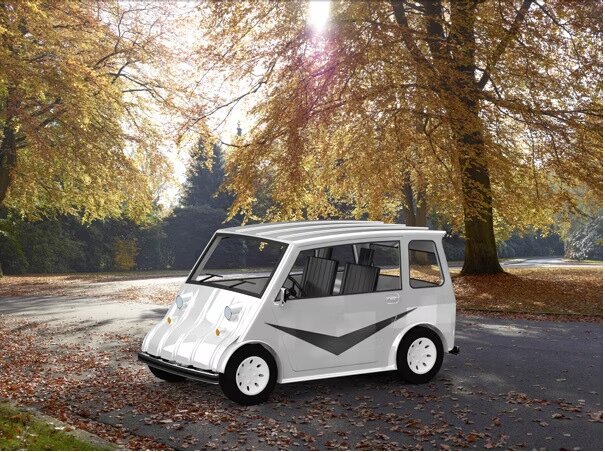

Unit 03 compact city car, front three-quarter view Unit 03 compact city car, rear three-quarter view
UNIT 03

Compact City Car

A smaller footprint city runabout with the longest range in the lineup, built for daily urban driving.

Performance

Motor15 kW
Range>250 km
Max speed90 km/h
Charging time~4 h

Capacity & Configuration

Seats2 (optional four-seat layout)
Doors2
Weight425 kg

Dimensions

Length2721 mm
Width1400 mm
Height1450 mm
Front overhang518 mm
Rear overhang518 mm
Wheelbase1800 mm

Brakes & Drive

DriveRear-wheel
BrakesDisc, front & rear
ABSYes
Tires135/60 R13

Construction: steel chassis, fiberglass body, AC, roll bar, spring bumpers, optional four-seat configuration.
